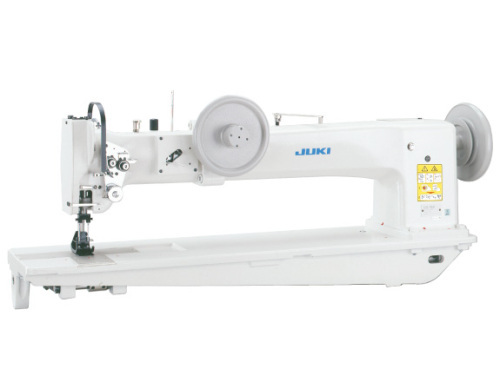

Juki LG-158 Long Arm Lockstitch Machine
Call for pricing
Unison-feed, Long Arm Lockstitch Machine with Vertical-axis Large Hook
With a generous 750 mm of free space under the arm and powerful unison-feed that provides a maximum stitch length of 10 mm, the machine delivers outstanding productivity when sewing heavy materials such as tents and sheets.
The machine head structure is designed to improve operability
- With its 750 mm wide space under the arm and a handwheel mounted at the middle of arm, the machine is ideal for the sewing of heavy materials such as tents and sheets. A large material can be sewn while spread over the bed.
- The bobbin winder is installed at the front face of the arm for easy operation.
- The presser foot goes up as high as 21.5 mm to ensure easy placement/removal of extra heavy-weight materials.
Safety device protects the needle and hook from damage
If the thread gets caught in the hook, the safety device is automatically actuated, preventing possible hook damage. Pressing the reset button will immediately return the machine to the normal state.
| Model name | LG-158 | LG-158-1 | ||||
|---|---|---|---|---|---|---|
| (2-needle) | (1-needle) | |||||
| Max. sewing speed | 1,500sti/min* | |||||
| Max. stitch length | 10mm (normal/reverse feed) | |||||
| Needle bar stroke | 46.9mm | |||||
| Needle gauge | Standard 19.1mm (3/4") | - | ||||
| Lift of the presser foot | By pedal: 21.5mm | |||||
| Thread take-up | Side type | |||||
| Alternating vertical movement | 6mm~19mm | |||||
| Hook | Vertical-axis large hook | |||||
| Needle (at the time of delivery) | DD×1 (#25) | |||||
| Thread | #20~#5, B69~B138, Nm=40/3~20/3 | |||||
| Safety mechanism | Provided as standard | |||||
| Bobbin winder | Built on the machine arm | |||||
| Lubrication | By an oiler | |||||
| Lubricating oil | JUKI New Oil No.1 (equivalent to ISO VG7) | |||||
| Distance from needle to machine arm | 750mm | |||||
| Bed size | 1,088mm×230mm | |||||
| Weight of the machine head | 108kg | |||||
*“sti/min” stands for “Stitches per Minute.”
