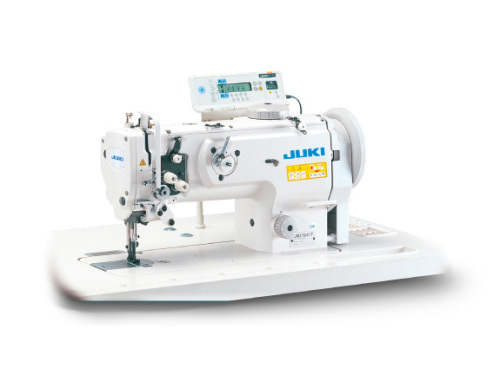

Juki DNU-1541 Lockstitch Machine
1-needle, Unison-feed, Lockstitch Machine with Double-capacity Hook
With its reliable feed and consistent seam quality, the machine responds outstandingly to the sewing of heavy materials.
With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.
Excellent sewing capabilities and feed performance
The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm.
In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.
High-speed performance increases productivity
The machine delivers increased productivity at sewingspeeds as high as 2,500sti/min (DNU-1541, -1541S) or 3,000sti/min (DNU-1541-7).
Safety mechanism (DNU-1541S)
When the thread is caught in the hook or any other sewing trouble occurs, the safety mechanism will automatically operate to prevent the machine from being damaged.
The vertical stroke of the walking foot and presser foot can be easily set and changed
The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head. The sewing speed is automatically regulated based on the vertical stroke setting. This ensures ideal sewing conditions at all times.
Thread trimming without fail (DNU-1541-7)
Consisting only of a moving knife and counter knife, the simple and well-balanced thread trimming mechanism is capable of cutting thick thread up to without fail.
A helpful automatic reverse feed function is provided as standard
With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore, if a suspended ruler is attached on the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.
| Model name | DNU-1541 | DNU-1541S | DNU-1541-7 |
|---|---|---|---|
| Max. sewing speed | 2,500sti/min* | 3,000sti/min* | |
| Max. stitch length | 9mm (forward / backward) | ||
| Needle bar stroke | 36mm | ||
| Lift of the presser foot | By hand: 9mm, By knee: 16mm | ||
| Thread take-up | Slide type | ||
| Amount of alternating vertical movement | 2.5~6.5mm | 1~6.5mm | |
| Dial for adjustment of alternating vertical movement |
- | Provided as standard | |
| Bottom-feed adjusting mechanism | - | Provided as standard | |
| Hook | Horizontal-axis full-rotary double-capacity hook | ||
| Needle (at the time of delivery) | 135×17 (Nm160) Nm125~Nm180 | ||
| Thread | #30~#5, B46~B138, Nm=60/3~15/3 | ||
| Pitch changing method | By dial | ||
| Bobbin thread winder | Provided as standard | ||
| Knee-lifter mechanism | Provided as standard | ||
| Safety mechanism | - | Provided as standard | - |
| Lubrication | Centralized oil wick lubrication (hook: automatic) | ||
| Lubricating oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) | ||
| Distance from needle to machine arm | 264mm | ||
| Bed size | 477mm×178mm | ||
| Automatic reverse feed function | Option | Provided as standard | |
| Compressed air and air consumption | - | 0.5MPa (5kgf/cm²), 0.3Nl/min | |
| Motor output | 750W | ||
| Power requirement | - | Single-phase 100~120V, 200~240V 3-phase 200~240V |
|
| Weight of the machine head | 36.5kg | 42.5kg | |
*"sti/min" stands for "Stitches per Minute."
